Synchronisation¶

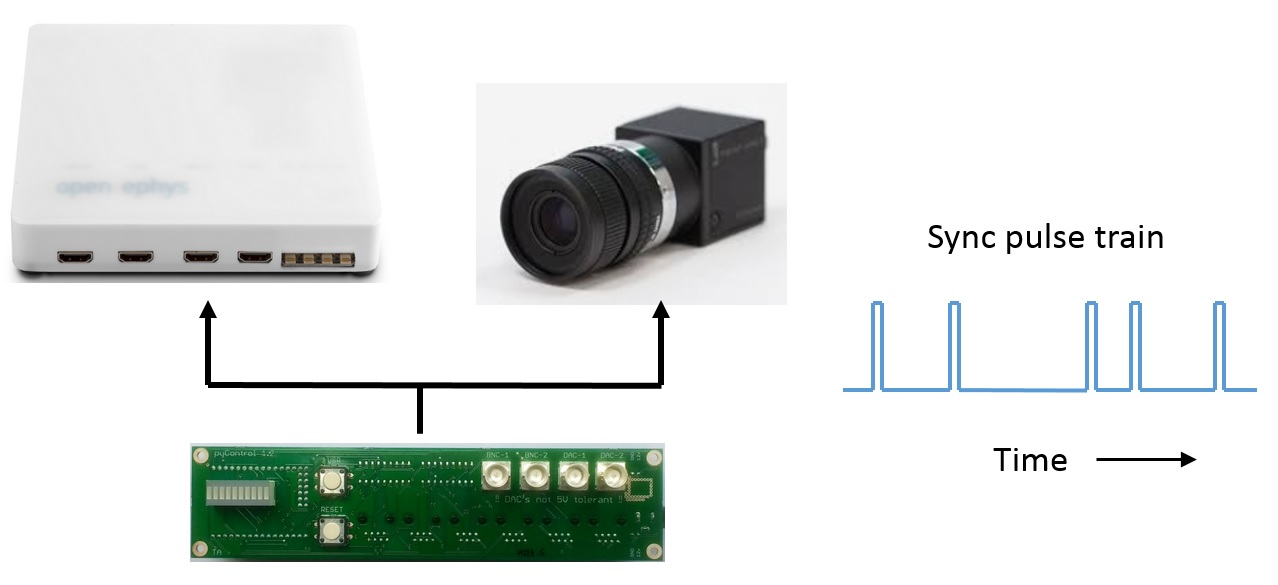

Experiments often require synchronising behavioural data with other systems such as video cameras or physiology recordings. pyControl provides a tool for data synchronisation that works by sending synchronisation pulses from pyControl to the other systems which need to be synchonised with it. The times when sync pulses occurred are recorded by each system in its own time reference frame and can then be used to convert times from one system into the reference frame of another using code provided in the tools folder.
The sync pulse trains have random inter-pulse intervals which ensures there is a unique match between the inter-pulse-interval sequences recorded on each system, so it is always possible to identify which pulse corresponds to which even if some pulses are missing, e.g. due to forgetting to turn a system on till after the start of a session. This also makes it unambiguous whether two files come from the same session in the event of a file name mix-up.
The only functionality a system needs to be synchronised in this way is the ability to record when digital input pulses occurred. This can be by explicitly storing timestamps, or implicitly, such as camera recording once each frame the state of an input pin (or whether an LED in the field of view is on or off).
Sync pulse generation¶
Sync pulse trains are generated by pyControl using the Rsync object. A single Rsync should be used to synchronise all external systems, so that they all recieve the same sync pulse train. This can be achieved physically by outputting the signal on one of the breakout board BNC connectors and using BNC T-junction adapters (e.g. this) to split the signal to the different systems.
class Rsync(pin, event_name='rsync', mean_IPI=5000, pulse_dur=50)
Arguments:
pin MicroPython pin to output sync pulses on.
event_name Name of the sync pulse events in pyControl data output.
mean_IPI Mean interval between sync pulses (milliseconds). Inter-pulse intervals are drawn from a uniform distribution on the range 0.1*mean_IPI to 1.9*mean_IPI.
pulse_dur Sync pulse duration (milliseconds).
To use Rsync, instantiate it in your hardware definition or task file:
sync_output = Rsync(pin=board.BNC_1, mean_IPI=1000) # Instantiate Rsync object on breakout board BNC_1
Once an Rsync object is instantiated, sync pulses will automatically be generated if the event name specified by the event_name argument is included in the tasks events list.
Synchronising data¶
The rsync module in the tools folder can be used in Python to convert event times from one hardware system's reference frame that of another system by using sync pulse times recorded on both systems. To illustrate this, assume we have an array of sync pulse times recorded by pyControl called pulse_times_pycontrol and an array of sync pulse times recorded by an ephys system called pulse_times_ephys. We also have an array of spike times recorded by the ephys system called spike_times_ephys which we want to convert into the reference frame of the pyControl data. We first instantiate an Rsync_aligner object using the pulse times recorded by both systems:
from rsync import Rsync_aligner
ephys_aligner = Rsync_aligner(pulse_times_A=pulse_times_pycontrol,
pulse_times_B=pulse_times_ephys)
We can then convert the spike times recorded by the ephys system into the pyControl data's time reference frame using:
spike_times_pycontrol = ephys_aligner.B_to_A(spike_times_ephys)
We could also convert an array of pyControl event times into the reference frame of the ephys data using:
event_times_ephys = ephys_aligner.A_to_B(event_times_pycontrol)
To work out which pulses correspond to which in the two sequences, the alignment code needs to know the relative units the two sets of pulse times are recorded in. For example, imagine we want to synchronise a camera which acquires frames at 60Hz with pyControl data, using an array called pulse_frame_numbers specifying the frame numbers when sync pulses occurred. The pyControl pulse times are in units of ms whereas the pulse_frame_numbers are in units of 1000/60 = 16.67ms. By default the alignment code will automatically estimate the relative units from the pulse trains themselves. Alternatively you can explicitly specify the units for each pulse sequence in ms:
camera_aligner = Rsync_aligner(pulse_times_A=pulse_times_pycontrol,
pulse_times_B=pulse_frame_numbers,
units_A=1, units_B=1000/60)
Automatic detection of the units convenient but may fail to find a match between the pulse sequences if you have too few sync pulses to accurately estimate the mean inter-pulse interval. Specifying the units manually can also be a good sanity check to make sure the data are as expected, for example if the camera was actually acquiring frames at 100Hz rather than 60Hz, the error would be detected when specifying units manually because the sync code would not find a match between the pulse sequences.
We can then convert the frame numbers when an event of interest occurred into the pyControl data's time reference frame using:
frame_times_pycontrol = camera_aligner.B_to_A(video_frame_numbers)
We can also convert the times when a pyControl event occurred into the corresponding camera frame numbers:
event_frame_numbers = camera_aligner.A_to_B(event_times_pycontrol)
An example analysis showing how to synchronise pyControl behavioural data with neural activity recorded using pyPhotometry is provided in this data synchronisation jupyter notebook.
Rsync_aligner class reference¶
class Rsync_aligner(pulse_times_A, pulse_times_B, units_A='auto', units_B='auto',
chunk_size=5, plot=False, raise_exception=True)
Arguments:
pulse_times_A The times when sync pulses occurred recorded by hardware system A.
pulse_times_B The times when sync pulses occurred recorded by hardware system B.
units_A The time units used by system A expressed in milliseconds. E.g. if system A uses units of seconds the units_A argument is 1000. If either units_A or units_B is set to the default value of 'auto' the code will automatically estimate the relative units for the two sequences from the pulse times themselves.
units_B The time units used by system B expressed in milliseconds.
chunk_size The length of pulse sequence chunks used for alignment, see below.
plot Whether to plot information about the alignment.
raise_exception If True an RsyncError exception is raised if no match is found between the sync pulse sequences. If False an error message is printed but no exception is raised.
Methods:
Rsync_aligner.A_to_B(event_times_A)
Convert a set of event times recorded by system A into the time reference frame of system B.
Rsync_aligner.B_to_A(event_times_B)
Convert a set of event times recorded by system B into the time reference frame of system A.
Implementation:
When the aligner is instantiated it works out which pulses from each system correspond to each other by taking short chunks of pulse sequence A and finding the corresponding chunks of pulse sequence B which minimise the mean squared error between the inter-pulse intervals. As the alignment is performed on short chunks rather than the whole sequence, it is robust against missing pulses on one or both systems even if they occur part way through a recording.
After finding for each chunk the match which minimises the mean squared error, the aligner determines a mean-squared error threshold which separates chunks that have a corresponding match in the other sequence from chunks that do not have a match (due to missing pulses). The threshold is found by fitting a mixture of Gaussians to the distribution of log mean squared errors from both the best matches and second best matches for all chunks. This distribution should have two well separated peaks, one containing correct matches and the other non-matches.
The A_to_B and B_to_A methods convert event times from the reference frame of one system to that of the other by linearly interpolating between sync pulse times on either side of the event. These functions return NaNs for any event time where the sync pulses on either side of the event do not have a match in the pulse sequence recorded on the other system.

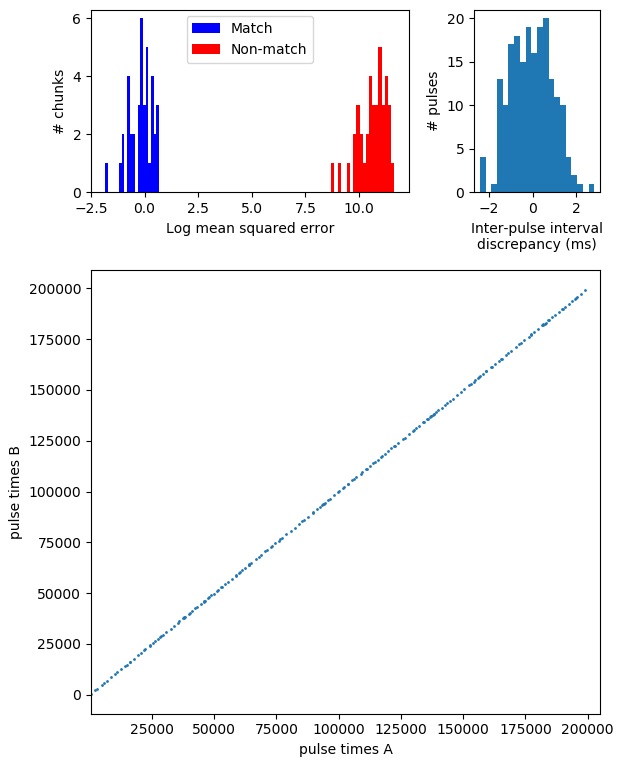

If the plot argument is set to True when the aligner is instantiated, the following plots are generated:
The top left panel shows the distribution of log mean squared error for the best and second best matches for all chunks, with colour indicating which are identified as matches and which non-matches. The top right panel shows the distribution of discrepancies between inter-pulse intervals recorded on the two systems. The bottom panel plots pulse times recorded by system A against corresponding pulse times recorded by system B.
